As per DGMS (Tech) Circular No. 06 of 2020 Dhanbad Dtd. 27.02.2020

MANUFACTURER :-SHRI GURUNANAK DEV ENGINEERING WORKS

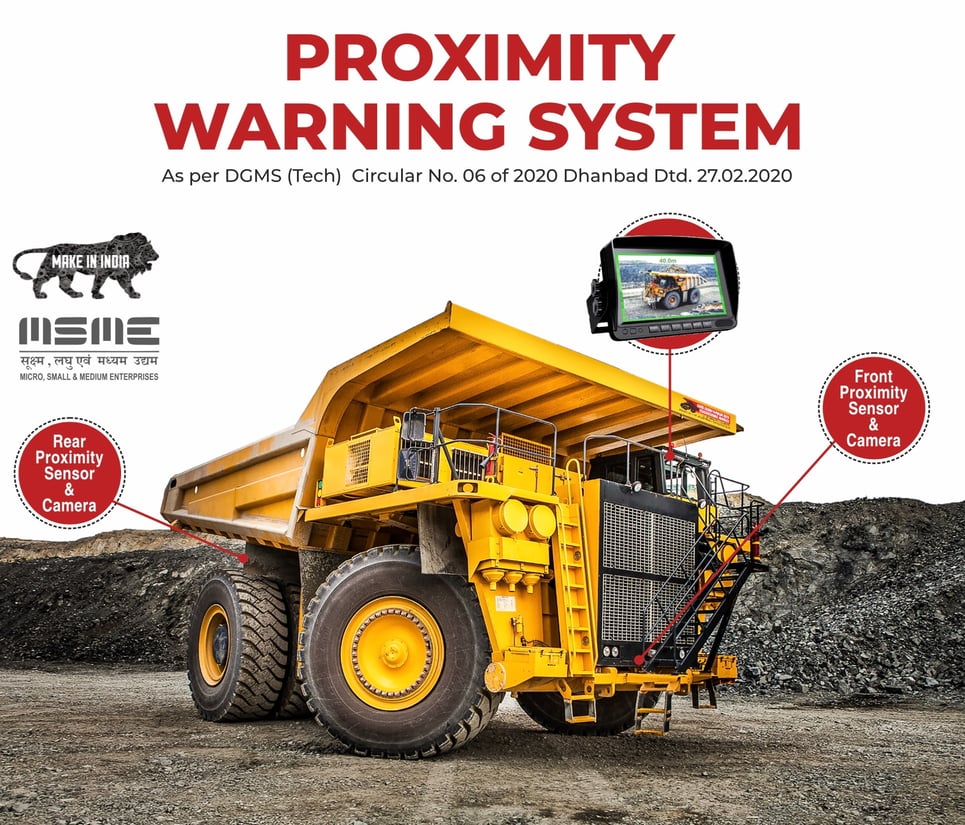

PROXIMITY WARNING DEVICE SYSTEM 24 VOLT DC

SHRI GURUNANAK DEV ENGINEERING WORKS is the MSME Manufacturer of Proximity Warning Device System with Recording 7 inch LED Display having 40 Meters Front Dynamic Detection and 40 Meters Rear Dynamic Detection Range with Complete Wiring Kit as per DGMS (Tech) Circular No. 06 of 2020. Suitable for one to one Fitment in all KOMATSU, CAT, BEML, BELAZ & TATA HITACHI Dumpers, Water tankers & all other HEMM equipment.

Proximity Warning System Designed for Mining Vehicles

SHRI GURUNANAK DEV ENGINEERING WORKS Manufactured Proximity Warning Device System comply to DGMS (Tech) Circular No. 06 of 2020 Dhanbad Dtd. 27.02.2020

Proximity Warning Device System is tested & certified for the following standards :

IEC 61000-4-5, IEC 61000-4-6, JSS 55555 : 2012, IS-9000 : Part-V / Part-II / Part-Ill / Part-XIV, & IP-66 Tested and Certified by Government Lab / NABL Accredited Institutions with Valid Test Report

Proximity Warning Device System with Recording 7 inch LED Display Having 40 Meters Front Dynamic Detection and 40 Meters Rear Dynamic Detection Range with Complete Wiring Kit as per DGMS (Tech) Circular No. 06 of 2020.

KEY FEATURES

LED 7 inch Display Monitor with Visual & Audio Alerts:

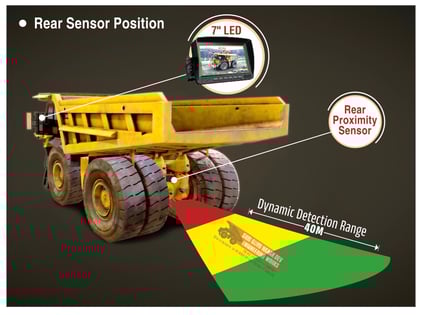

7 inch display for live video footage from front camera, front proximity sensor with distance measurement on screen with Green, Yellow & Red zone detection when vehicle moving in forward direction. And similarly when reversing live footage from rear camera and rear sensor with distance measurements having Green, Yellow & Red zones. The monitor displays live distance measurements in meters with visual cues using a three-color warning system for easy recognition:

• Green: Safe Distance Mode

• Yellow: Conscious Distance Mode

• Red: Alert Distance Mode

Additionally, audio alerts provide the operator with further notification of potential hazards.

Front Side Object Position Detection: LEFT-RIGHT-CENTRE

Experience Next-Level Safety with our Proximity Warning System's Precise Object Detection.

Adjustable Detection Range:

The sensor allows customization of the detection range, with a maximum length of 40 meters and adjustable width tailored to vehicle specifications and operational needs.

Intelligent Alarm System: The system has an intelligent tone alarm system.

Dynamic Capability:

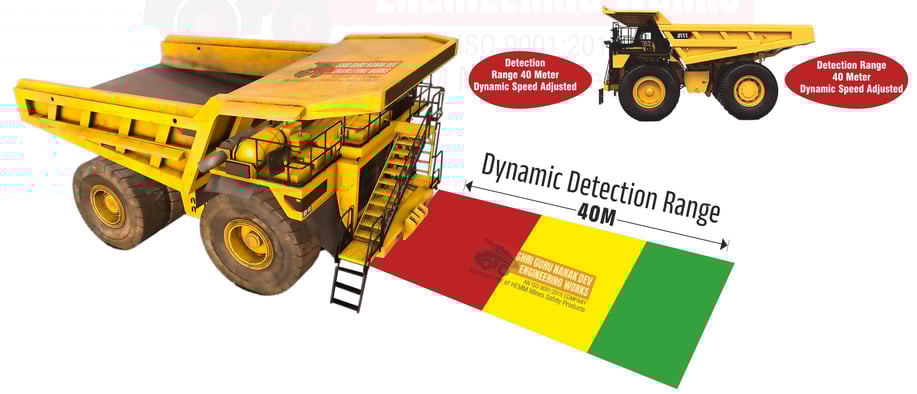

The system features Dynamic Detection, adjusting its detection range with the vehicle's speed:

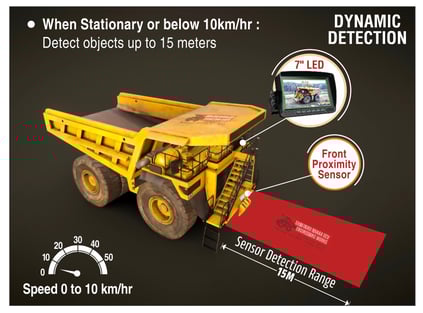

• When Stationary or below 10 km/hr : Detects objects up to 15 meters.

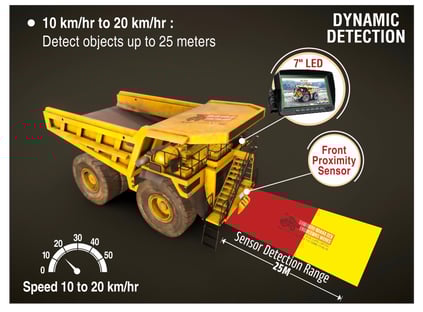

  10 km/hr to 20 km/hr: Detects objects up to 25 meters.

• 20 km/hr to 30 km/hr: Detects objects up to 30 meters.

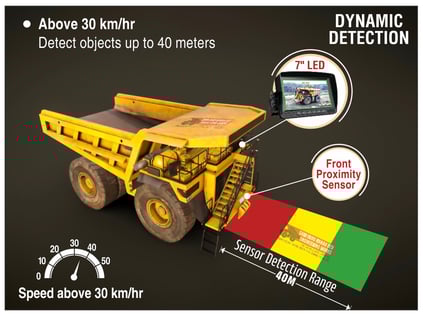

• Above 30 km/hr: Detects objects up to 40 meters.

• This dynamic range adjustment ensures optimal safety by increasing the detection range as the vehicle's speed increases.

• Also Capable of adjusting Dynamic Detection to meet customers specific needs.

SMART RECORDING FACILITY

The Shri GuruNanak Dev Engineering Works manufactured Proximity Warning System is equipped with a 7 inch screen with front & rear camera recording facility that stores data of last 96 operating working hours in video format. This smart system detects Proximity of humans / machinery / obstacles from 40 meters, dynamically adjusted with speed, whether the vehicle is stationary or in motion.

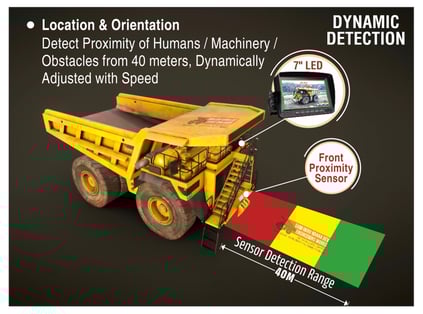

• Detect Proximity of Humans / Machinery / Obstacles from 40 meters, Dynamically Adiusted with Speed

• 7 inch Display for Front & Rear Sensor and Night vision Camera

Shri GuruNanak Dev Engineering Works manufactured Proximity Warning System with Dynamic Detection Capability provides enhanced safety by adjusting detection ranges based on vehicle speed. Coupled with customizable radar sensing, visual and audio alerts, and object positioning, this system significantly improves the safety of mining vehicle operations.

Proximity Warning Device
